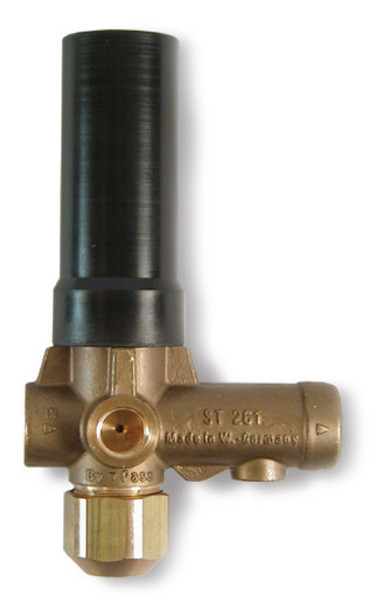

Suttner ST-261T, 200261503, Unloader Valve, 8 GPM, 3625 PSI

All Suttner products require a minimum order of $100 consisting of Suttner products in the order.

Suttner ST-261T Unloader Valve 200261503, crafted for rental machines unable to have its valve readjusted. Housing working components of high-grade stainless steel, PTFE, and Viton seals for optimal heat and chemical resistance. The valve's efficient and straight flow-through design curtails pressure loss and is ideal for adjusting pressure with the internal bypass valve, without the need to remove the unloader from the unit.

Specifications:

• Pressure Range: 500 PSI min - 3625 PSI max
• Temperature: 176° F
• Flow Rate: 8 GPM
• Inlet: 3/8" FPT
• Outlet: 3/8" FPT
• Bypass Connection: 1/4"
• Weight: 1.34 lb

Key Features:

• Working components constructed of high-grade stainless steel.
• PTFE and Viton seals for maximum heat and chemical resistance.
• Straight flow-through design minimizes pressure loss through valve.
• Adjustable valve allows limit setting on both maximum and minimum pressures.
• Internal bypass valve can be easily accessed and repaired without removing unloader from unit.

Specifications PDF
