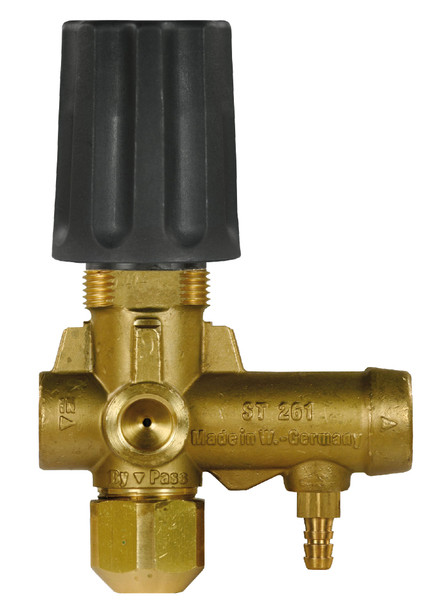

Suttner ST-261I, 200261570, Unloader, 8 GPM, 3625 PSI

All Suttner products require a minimum order of $100 consisting of Suttner products in the order.

Suttner Unloader ST-261I 200261570, fabricated for high-grade performance with exclusive downstream (venturi-type) injector, offers a steady flow rate of 8 GPM with consistently adjustable pressure limits between 500 PSI min and 3625 PSI max.

Specifications:

• Pressure: 500 PSI min, 3625 PSI max
• Temperature: 176°F
• Flow Rate: 8 GPM
• Injector Flow rate: 2.25 - 3.35 GPM
• Orifice: 2.1 MM
• Inlet & Outlet: 3/8" FPT
• Bypass Connector: 1/4"
• Weight: 1.36 lb

Key Features:

• Working components constructed of high-grade stainless steel.
• PTFE and Viton seals for maximum heat and chemical resistance.
• Straight flow-through design minimizes pressure loss through valve.
• Adjustable valve allows limit setting on both maximum and minimum pressures.
• Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
